-25.93%

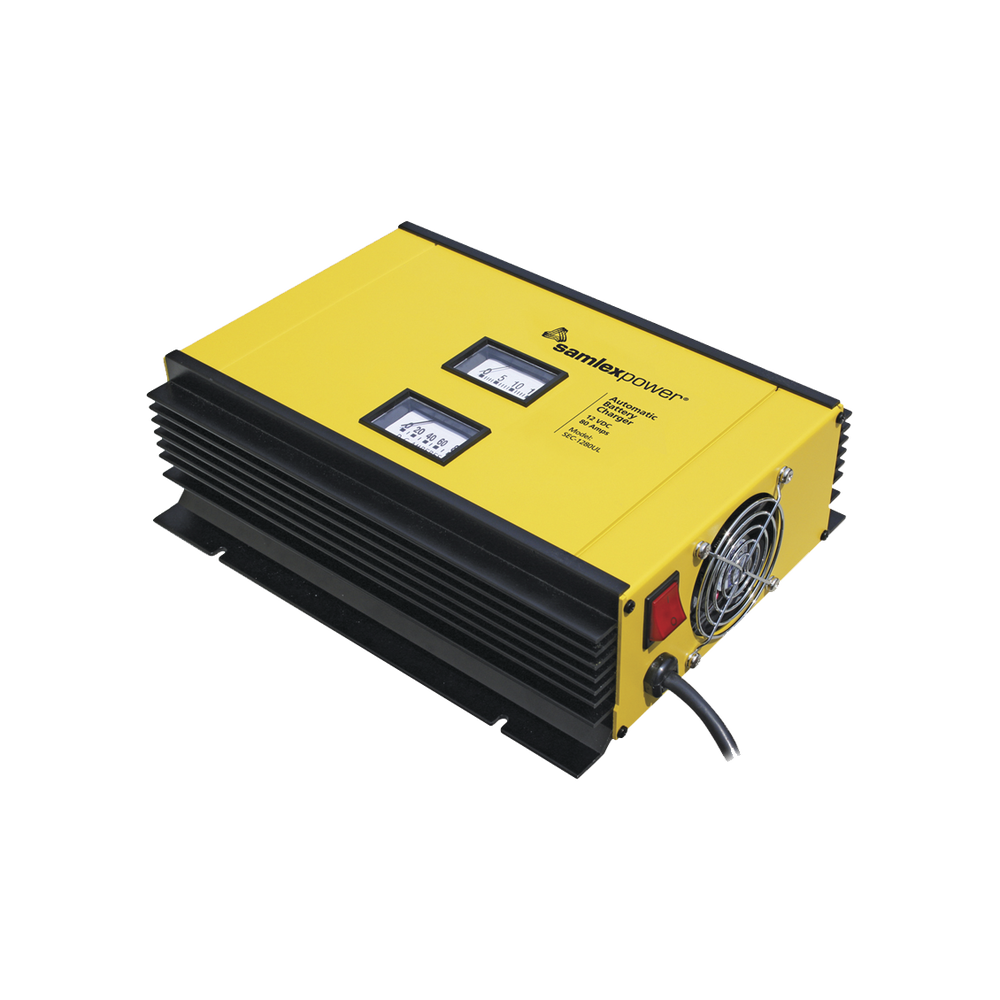

Cargador para Baterías SAMLEX 12V, 80 A / Bancos de 750 a 850 Ah / (Bajo pedido)

Original price was: $32,062.28.Current price is: $23,749.84. IVA Incluido

Cargador para Baterías SAMLEX 12V, 80 A / Bancos de 750 a 850 Ah / (Bajo pedido)

Agotado

Descripción

Compartir es ayudar.

Design Features

  • Switch mode technology for high efficiency, lightweight and quiet operation
  • Automatic operation for ALL Lead Acid Batteries Flooded, AGM or Gel Cell
  • Can charge 2 banks of batteries simultaneously, no isolator necessary
  • Can be used as a power supply or DC UPS when used in conjunction with a battery
  • User Configurable AC Input voltage 120 or 230 VAC, 50 / 60 Hz
  • User Selectable (by DIP Switch) for 2 or 3 stage, rapid and safe charging of standalone and loaded Lead Acid Batteries
  • “Half Power Mode” reduces maximum charging current to half the rated capacity, allows for safe charging of lower capacity batteries
  • Voltmeter and Ammeter for monitoring
  • Fan cooled based on output current
  • Protections: Short circuit, overload, reverse battery connection and over temperature
  • Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensive

Specifications
  • Input: 120 VAC 60 Hz or 230 VAC 50 Hz
  • Output: 12 VDC
  • Amps: 80
  • Remote Control: 900-RC
  • Weight: 9 lbs (4.1 kg)
  • Dimensions: 15 x 9.61 x 3.82′ (381 x 244 x 97 mm)
  • Safety: Intertek ETL Listed to meet UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B

Applications

  • Automotive
  • Recreational vehicles
  • Marine
  • Communications sites
  • Battery back-up systems
